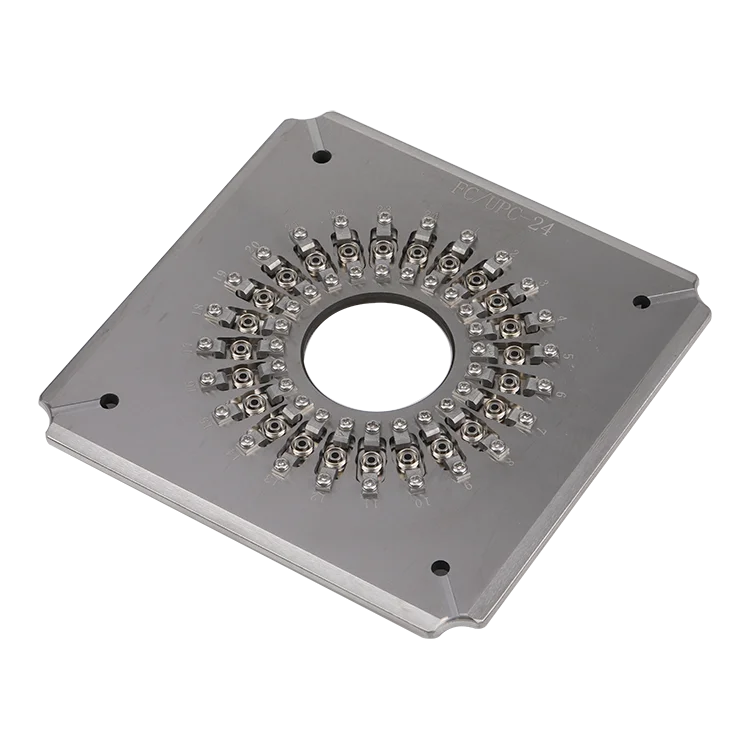

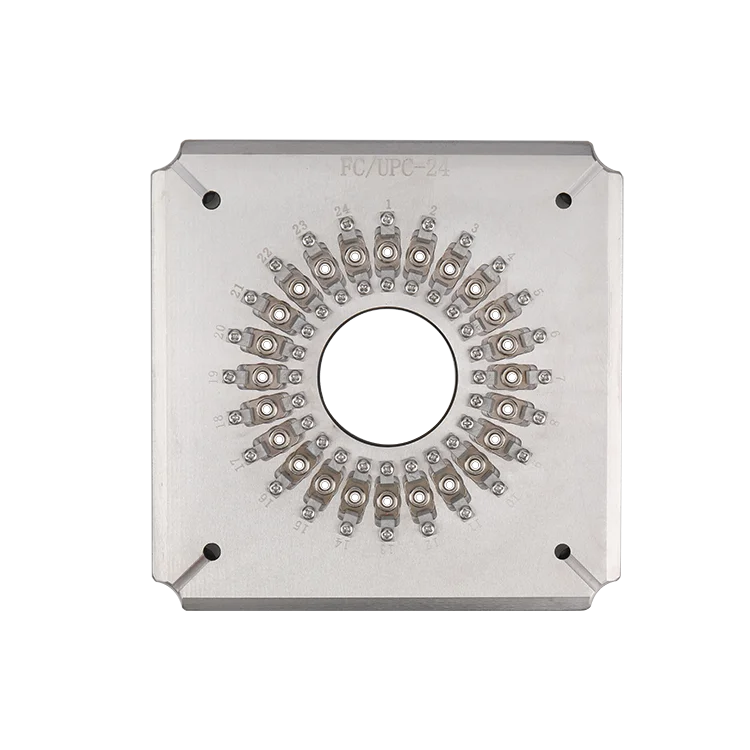

High Efficiency Anti-Rust Durable 24 Ports FC UPC Fiber Optic Polishing Jig for Precision Connector Polishing

Name: High Efficiency AntiRust Durable 24 Ports FC UPC Fiber Optic Polishing Jig for Precision Connector Polishing
Brand: chuanglixun
Price: 210.23 USD

China High Efficiency Anti-Rust Durable 24 Ports FC UPC Fiber Optic Polishing Jig for Precision Connector Polishing wholesale

Model Number : FC UPC-24, FC UPC-24

Place of Origin : Guangdong, China

Brand Name : chuanglixun

MOQ : 1

Price : $210.23-230.51

Type : Fiber Adapter & Connectors

Material : Hardened stainless steel s136

Dimensions : 174mmx174mmx5.1mm

Weight : 1.2kg

No. of Fiber : 24

Ferrule Diameter : 2.5mm

Capacity : 24 positions

Insertion Loss : ≤0.20dB

Return Loss : ≥55dB (PC)

End-face : PC

Connector Type : FC PC

Model : FC-PC-24

Net Weight : 1.5 kgs

Gross Weight : 2.0 kgs

Suitable Machines : CLX-02E polishing machine, Seikoh Giken SFP-550 polishing machine

Contact Now

24 port FC UPC Fiber Optic Polishing Jig optical fiber sc upc polishing fixture For Fiber Optic Connector Fast Connector

High Efficiency Anti-Rust Durable 24 Ports FC UPC Fiber Optic Polishing Jig for Precision Connector Polishing

Product Description:

This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.

Features:

1.Designed for FC/PC connectors. 2.Easy to change jigs, simple and flexible to operate. 3.High efficiency, polishing Max 24 or 32 or 36 connectors in one cycle.The first pass yield for end face quality reach 98%～100% 4.The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC), 5.PC return loss ≥55dB , Insertion loss ≤0.20dB ( typical) 6.The accessories on the fixture can be replaced, Greatly extend the service life.

Specification:

Model	FC-PC-24	FC-PC-32	FC-PC-36
Brand	CLX	CLX	CLX
Connector Type	FC PC	FC PC	FC PC
End-face	PC	PC	PC
Ferrule Diameter	2.5mm	2.5mm	2.5mm
Capacity	24 positions	32 positions	36 positions
Insertion Loss	≤0.20dB	≤0.20dB	≤0.20dB
Return Loss	≥55dB (PC)	≥55dB (PC)	≥55dB (PC)
Application	Polishing assembled FC PC connectors	Polishing assembled FC PC connectors	Polishing assembled FC PC connectors
Material	Stainless Steel
Dimension (LWH)	17417426 mm
Net Weight / Gross Weight (kg)	1.5 kgs / 2.0 kgs
Suitable machines	CLX-02E polishing machine Seikoh Giken SFP-550 polishing machine The similar machines

Get a free Quotation via Us >>>GO

Polishing Effect

1. Polished Connector Ferrule Faces:

Fiber End Face

High-quality end-face polishing, no white spots, no scratches, the fiber edge is clearly visible

2. ILRL Test Result:

Connector Type	SM/UPC	SM/APC	MM/UPC
Insertion Loss	≤0.20dB	≤0.20dB	≤0.50dB
Return loss	≥55dB	≥60dB	≥30dB

3. Geometry Test Result:

NO.	Parameters	UPC Criterion	APC Criterion
1.	Radius of Curvature	5-25mm	5-12mm
2.	Apex Offset	0-50μm	0-50μm
3.	Fiber Height	-100~+50μm	-100~+50μm
4.	Angle	n/a	8.00+/-0.50°

Company profile

Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd.

Shenzhen Chuanglixun Optoelectronic Equipment Co., Ltd. was established in 2010. Is an optical communications equipment company integrating research and development, production, after-sales service and technical services. We not only sell high-quality products and provide good after-sales service,but also provide free technical support to our customers. For the technical problems
encountered in the production of optical fiber connectors, there are good solutions.

Get a free Quotation via Us >>>GO

FAQ

1.Are you a factory or a trader？

......we are factory.

2.What is your MOQ?

......MOQ 1 piece.

3.Do you provide sample services？
......Yes, we will provide samples.

4.How will you ship to me?

....... We will spend 4 to 6 days via DHL or FedEx. Properly extended based on order quantity.

5.How do we pay?

......Book in advance or multiple payment methods such as T / T and T / L.
6.How long is your product warranty?

......The warranty period is 1 year (the warranty period will provide free repairs, except for consumables). After the warranty period, accessories will continue to be provided and will be charged at cost.

7.Do you provide customized services？

......Yes, we provide customized services, According to customer requirements and description.
